32-Bit CPU 1D CCD Barcode Scanner Module OEM USB TTL Interface DE1400

  • 1
  • 2

Brand Name : Dingyu/ DY SCAN

Model Number : DE1400

Certification : CE, ROHS, FCC, IEC, FDA

Place of Origin : China

MOQ : 1 Pcs

Price : Negotiable

Payment Terms : T/T, Paypal, Alibaba

Supply Ability : 10000pcs/month

Delivery Time : 3-7 days

Packaging Details : 188mm L * 95mm W * 40mm H

Weight : 6g

Interface Type : USB,TTL, PS2

Communication Mode : 12pin pitch0.5

Scan Type : Linear CCD

Resolution : 3mil

Depth of field : 30-700mm

Mode : Manual, Continuous, Auto sense, Flashing

Print Contrast Signal : ≥20%

Contact Now

32-Bit CPU 1D CCD Barcode Scanner Module OEM USB TTL Interface DE1400



Product Description



32-Bit CPU 1D CCD Barcode Scanner Module OEM USB TTL Interface DE1400

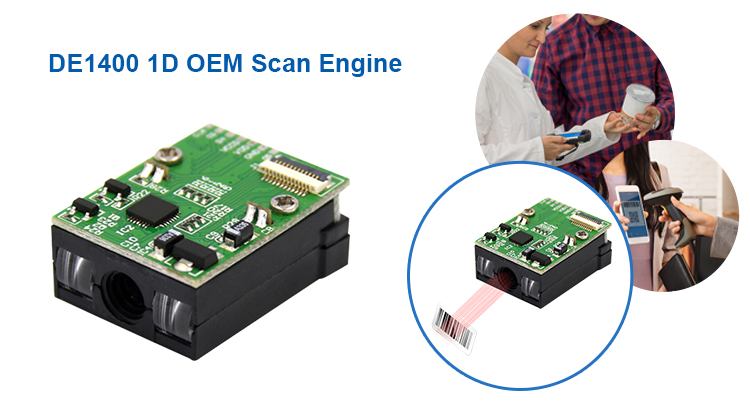

DE1400 is a embedded barcode scanner module with leading CCD image recognition technology and intelligent image recognition system.



It can scan universal 1D barcodes, support USB, TTL interfaces, read the paper, goods, screens, other media barcodes.



Easily embedded in a variety of OEM products handheld, portable, fixed and barcode collector, etc.







Features





32-Bit CPU 1D CCD Barcode Scanner Module OEM USB TTL Interface DE1400

☆ Mini size, widely used in PDA, mobile payment machines.

☆ Read all mainstream 1D barcodes in the market easily.

☆ High-performance processor, fast decoding. (3mil)

☆ Interface: USB,TTL, PS2

☆ Low power consumption, upgrade online.

☆ Support mutiple systems and languages, secondary development.







Application



▅ Lockers ▅ Mobile coupons, tickets

▅ Medical research ▅ Mobile payment barcode scanning

▅ Lottery machines ▅ Self-service terminals

▅ Queuing calling equipment ▅ Self-service vending machines

▅ Microcontroller development ▅ barcode scanner





32-Bit CPU 1D CCD Barcode Scanner Module OEM USB TTL Interface DE1400

Scan Type Linear CCD
Light Source Visible red light, 625±10nm
CPU 32-bit
Resolution 2500
Reading precision ≥3mil/0.076mm(PCS90%,Code 39)
Decoding speed 300times/s
Depth of field 30mm-700mm
Scan Mode Manual ,Continuous, Auto Sense, Flashing
Scan angle Test Conditions:CODE39,10mil/0.25mm,PCS90%
  Pitch:±60°
  Roll: ±30°
  Skew: ±60°
Print Contrast Signal ≥20%
Ambient Light Dark environment, indoor natural light
Symbologies UPC-A,UPC-E,EAN-8,EAN-13,ISSN,ISBN,Code 128, GS1-128,ISBT 128, Code 39,Code 93,Code 11, Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5,Standard 2 of 5(IATA),Codabar(NW-7),Plessey,MSI Plessey,RSS,China Post,etc.





Weight <6g
Dimension (L)26.5mm * (W)20mm *(H)11.5mm
Communication Mode USB(USB-KBW,USB-COM),TTL,PS2
Interface Type FFC 12PIN Pitch 0.5
Power Supply DC 3.3-5V@50mA(work)



32-Bit CPU 1D CCD Barcode Scanner Module OEM USB TTL Interface DE1400
