Portable 1D Laser Finger Ring Barcode Reader USB Wired 2.4G 450mAh

Name: Portable 1D Laser Finger Ring Barcode Reader USB Wired 24G 450mAh
Brand: DYscan
Price: 1 USD

Buy cheap Portable 1D Laser Finger Ring Barcode Reader USB Wired 2.4G 450mAh product

Brand Name : DYscan

Model Number : DI9010L-1D

Certification : CE ROHS FCC IEC

Place of Origin : China

MOQ : 2pcs

Price : negotiable

Payment Terms : T/T, Western Union,PAYPAL

Supply Ability : 100000pcs/month

Delivery Time : 5-7days

Packaging Details : 55*27*22.5cm/50pcs /Carton

Scan Type : Laser

Resolution : 3mil

Decoding speed : 300times/s

Depth of field : 35mm~420mm

Scan Mode : Trigger, Continuous

Print Contrast Signal : ≥25%

Storage : 350Kb（over 20,000 Product code）

Battery capacity : 360mAh

Symbologies : 1D 2D

Dimension : L51.5mm * W35mm * H45mm

Contact Now

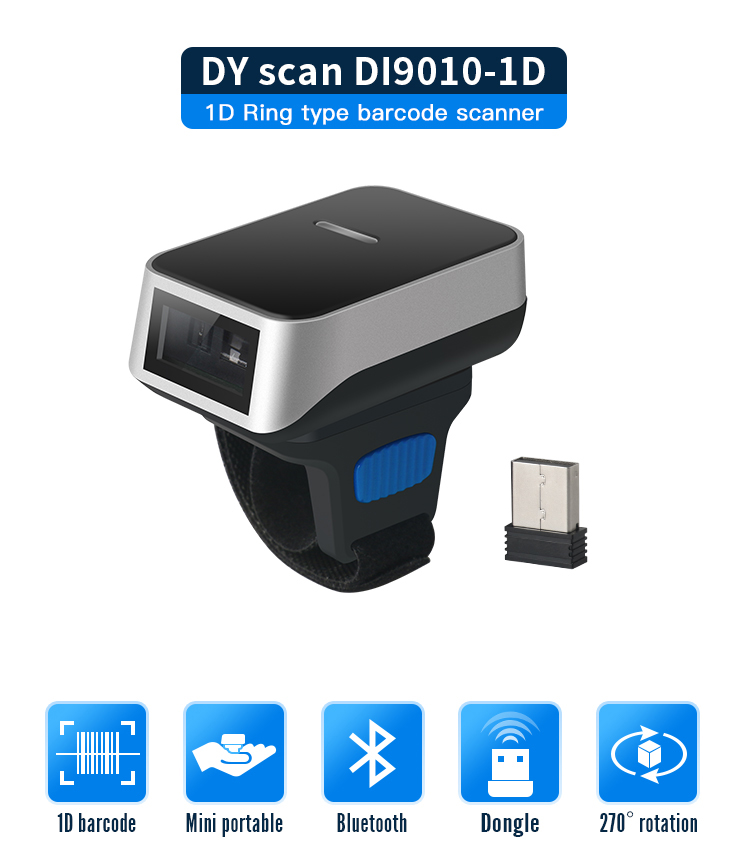

1D Portable Barcode Scanner

DI9010L-1D is a high-performance 1D laser bluetooth barcode scanner with leading Laser recognition technology.

It can easily read the paper, goods and other barcodes. ( Except screen)

Widely used in manufacturing, warehouse, logistics, health care, retail chain, mobile payment, express delivery, inventory management, food traceability, asset inventory,etc.

Feature

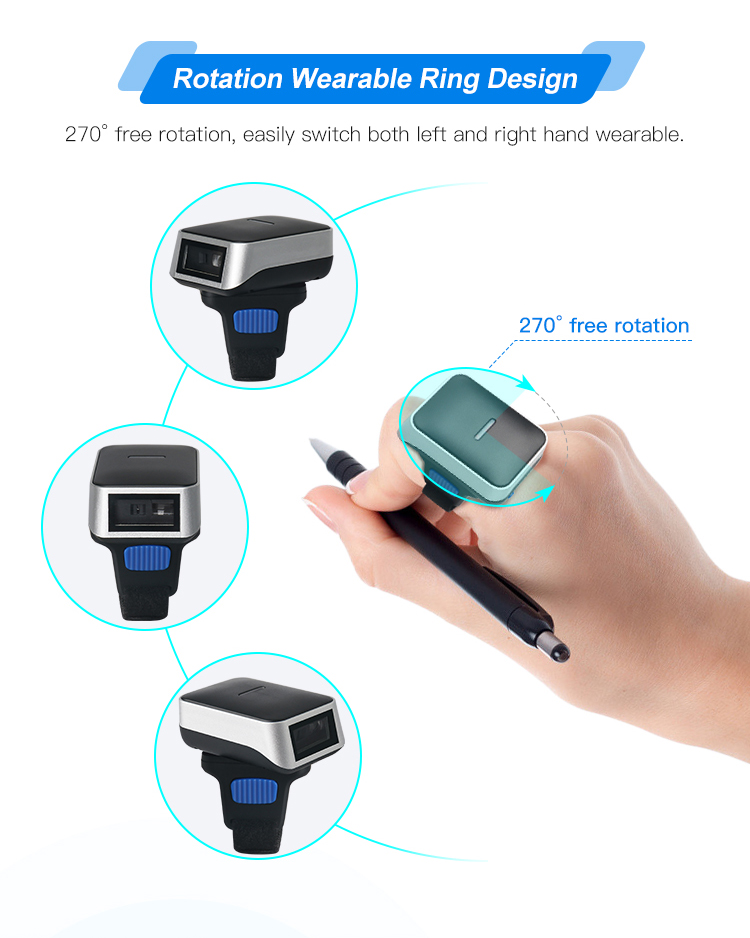

Wearable design, widely used in warehouse, express.
Read all mainstream 1D barcodes in the market easily.(3mil)

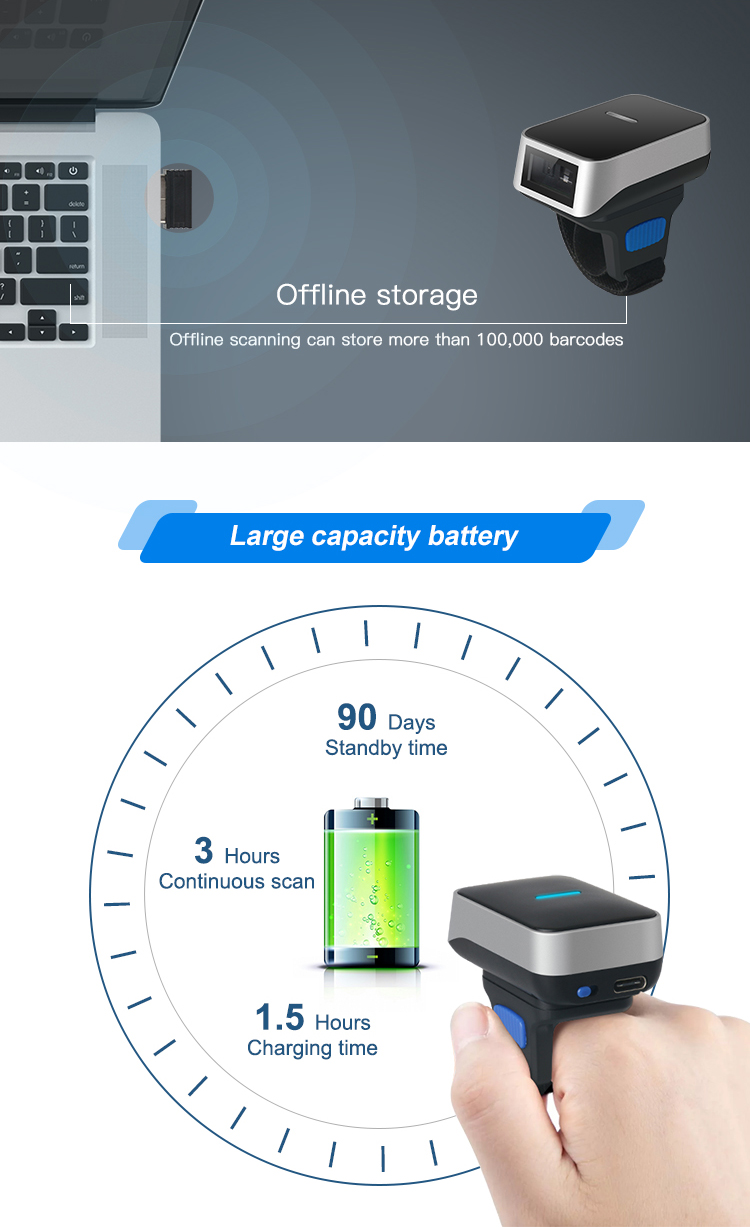

100,000 data storage capacity.
Bluetooth 4.2, intelligent automatic connection when it’s beyond range, not manual setting.

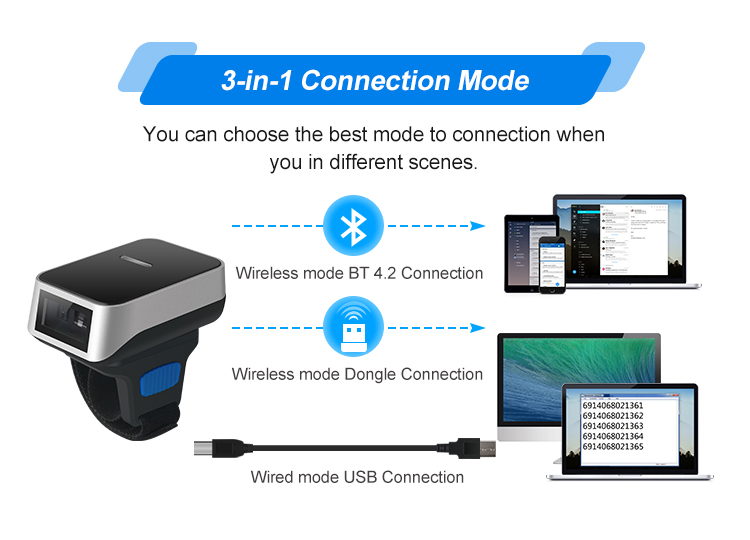

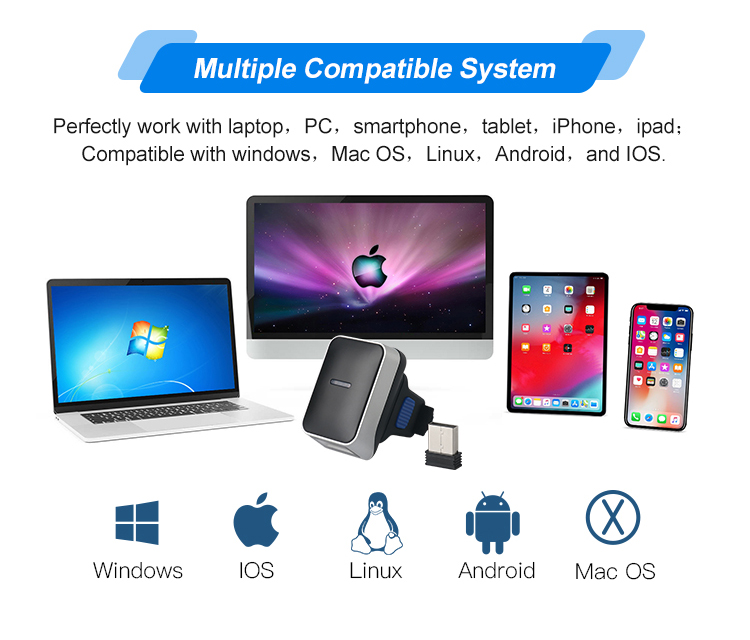

Mode: Bluetooth(HID,SPP,BLE), wired, connected with PC, mobile phone easily.

Performance

Scan Type	Laser
Light Source	Visual laser diode,wavelength 650nm
CPU	32-bit
Reading precision	≥3mil/0.076mm(PCS90%,Code 39)
Decoding speed	300times/s
Depth of field	35mm~420mm
Scan Mode	Trigger, Continuous

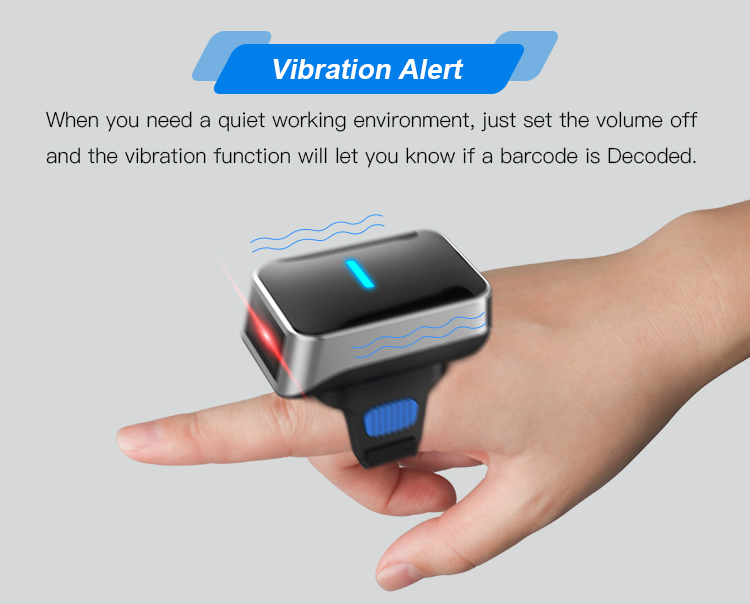

Prompt mode	LED indicator, buzzer, vibration
Scan angle	Test Conditions:CODE39,10mil/0.25mm,PCS90%
	Pitch:±60°,Roll: ±30°,Skew: ±60°
Print Contrast Signal	≥25%
Ambient Light	indoor natural light
Wireless communication mode	Synchronization , storage
Wireless transmission distance	30meters Bluetooth(Open distance)
Storage	350Kb(over 20,000 Product code)
Battery capacity	360mAh
Battery charging time	About 3.5 h
Continuous working time	≥4h
Symbologies	UPC-A,UPC-E,EAN-8,EAN-13,ISSN,ISBN,Code 128, Code 39,Code 93,Code 11, Interleaved 2 of 5,Codabar(NW-7),MSI Plessey,RSS,China Post,etc.

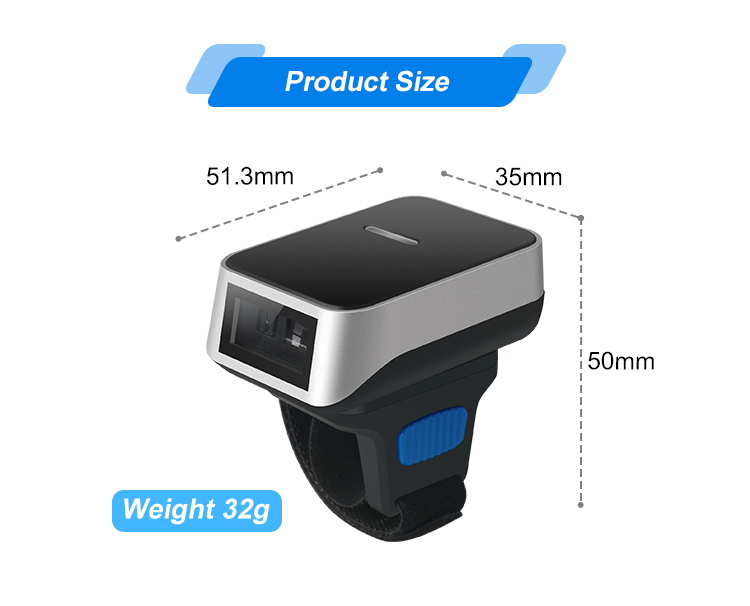

Physical Parameter

Weight	≈38g(without cable)
Dimension	L52.0mm * W35.0mm * H45.4mm
Communication Mode	USB-KBW ,wireless bluetooth
Interface Type	Type C
Power Supply	DC 5V@75mA(Average Work)

Environmental

Operating temperature	-20℃ to 55℃
Storage temperature	-20℃ to 60℃
Humidity	5% to 95%(non-condensing)
Drop Height	1.2m
Temp. Test	30 minutes for high Temp., 30 minutes for low Temp.,
High Temp.	60℃
Low Temp.	-20℃
Transport Vibration Test	10H@125RPM

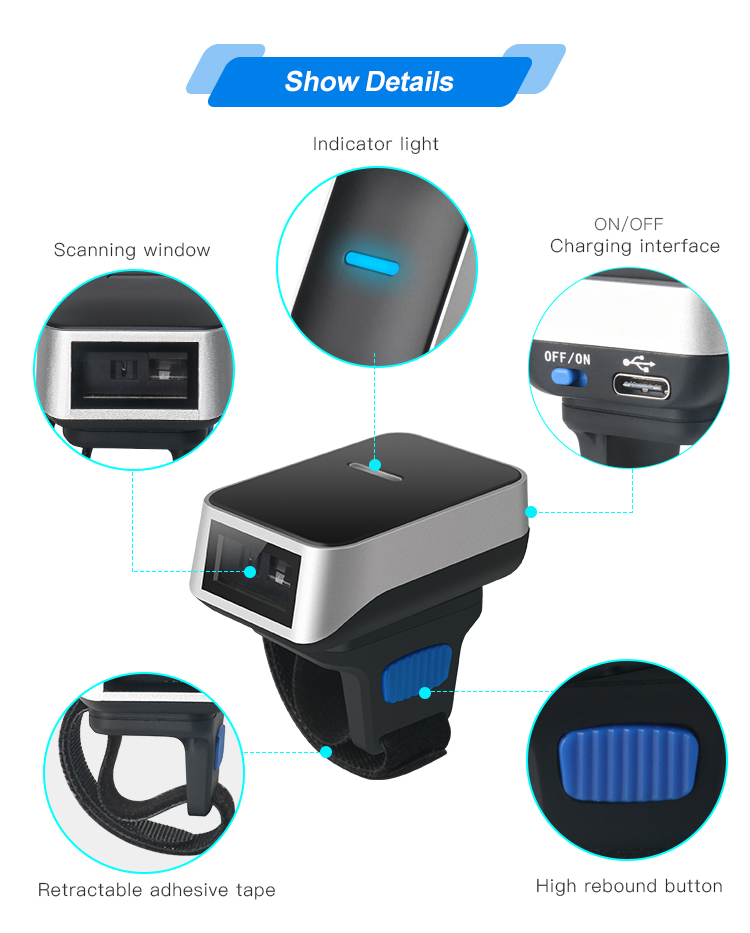

Detail Image

Portable 1D Laser Finger Ring Barcode Reader USB Wired 2.4G 450mAh
