Supermarket Handheld USB Barcode Scanner 1D 2D QR Code Waybill Desktop

  • 1
  • 2
  • 3

Brand Name : DY SCAN

Place of Origin : Guangdong, China

Certification : FCC CE ROHS

Packaging Details : 1D 2D QR CODE waybill desktop supermarket handheld usb barcode scanner

Supply Ability : 100000 Piece/Pieces per Month

Price : $45.00 - $60.00/pieces

Private Mold : Yes

Products Status : Stock

Type : Desktop Barcode Scanner

Scan Element Type : CMOS

Colour Depth : 32 Bit

Interface Type : usb, TTL RS232

Max Paper Size : A4 Size

Optical Resolution : 1280*800

Scan Speed : 100CM/S

Warranty(Year) : 1-Year

Resolution : ≥4mil/0.1mm(PCS90%,CODE 39)

Dimensions (W x D x H) : L150mm * W150mm* H75mm

Scanning range : Roll:±360°,Pitch:±70°or greater,Yaw:±65°

Depth of field : 0-650mm

Print Contrast Signal : 20%

Drop height : 1.5m

Light : Red light

Port : Shenzhen

Contact Now

1D 2D QR CODE Waybill Desktop Supermarket Handheld Usb Barcode Scanner

Products Description

DP8550 is a desktop 2D image scanning platform, using advanced CMOS image recognition technology, intelligent image recognition system.

DP8550 scanning platform, with its compact and compact modern design and powerful imaging function, can be used in high-flow retail cashier environment and it’s suitable for large supermarkets, department stores, convenience stores, drugstores, tobacco, hotels and grocery stores.

☆ High-performance MCU to easily identify the mainstream 1d or 2d barcode.
☆ Read barcodes above 4MIL to meet the need of daily scanning.
☆ 2d imaging technology, support paper, printing, plastic, screen barcode.

Product Parameters
Scan Type
CMOS
Light Source
Red light
Pixel
1280*800
Resolution
≥4mil/0.1mm(PCS90%,CODE 39)
Decoding speed
100CM/S
Depth of field
0-650mm
Scan Mode
Auto scan
Scan angle
Roll:±360°,Pitch:±70°or greater,Yaw:±65°
Horizontal 62°× Vertical 41°
Print Contrast Signal
≥20%
Symbologies
1D:UPC-A,UPC-E,EAN-8,EAN-13,Code 128, GS1-128, Code 39,Code 32, Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of
5(Straight 2 of 5),Codabar(NW-7),MSI,GS1 Databar(Omnidirectional, Limited, Expanded),ITF-14, ITF-6, GS1-Databar(RSS) , etc.
2D: QR Code, Micro QR Code, Data Matrix,PDF417, Micro PDF 417, Aztec,etc.
Weight
≈425g(without Cable)
Dimension
L150mm * W150mm* H75mm
Communication Mode
USB,RS232
Cable length
1.5m
Power Supply
DC 5V@260mA(work)



Advantage:

* Factory direct sale, cheap price.

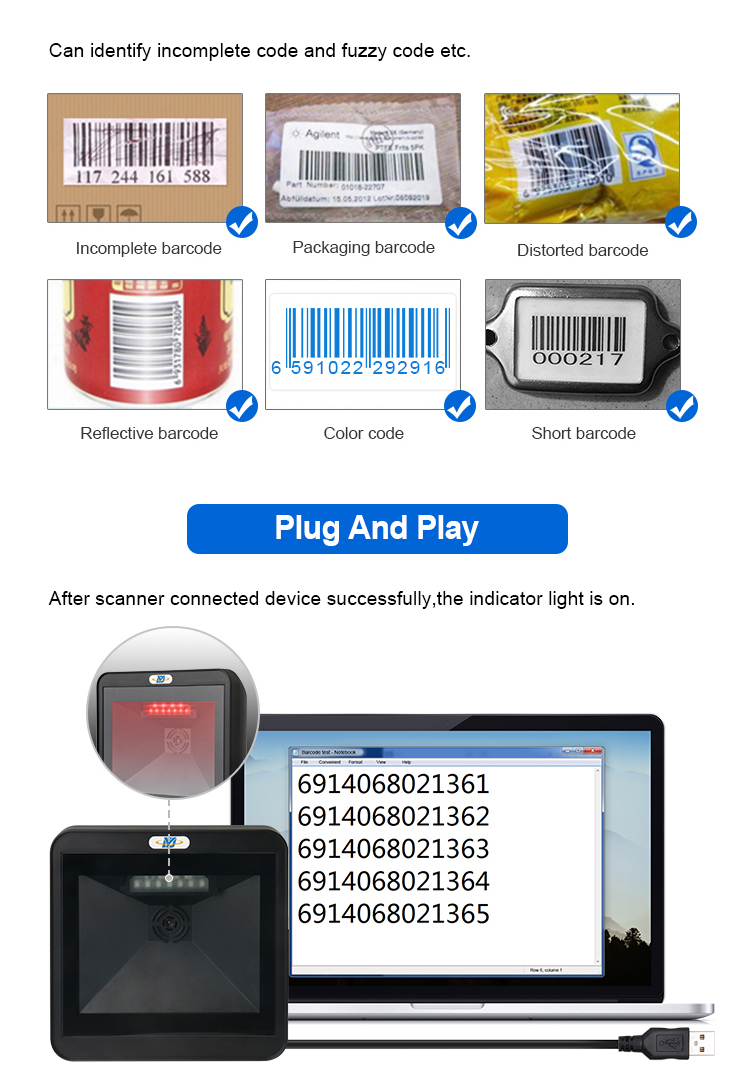

* Fast and accurate in reading 1D codes.

* USB interface, plug and play, no need dirver.

* High decoding ability and high performance.

* Support universal keyboard language.

* Sharp design with comfortable feeling in hand. Comfortable button, service life of button up to 5million times.

* Made of durable ABS material, wear resistant and drop-proof.

Supermarket Handheld USB Barcode Scanner 1D 2D QR Code Waybill Desktop
Supermarket Handheld USB Barcode Scanner 1D 2D QR Code Waybill Desktop
Supermarket Handheld USB Barcode Scanner 1D 2D QR Code Waybill Desktop
Supermarket Handheld USB Barcode Scanner 1D 2D QR Code Waybill Desktop

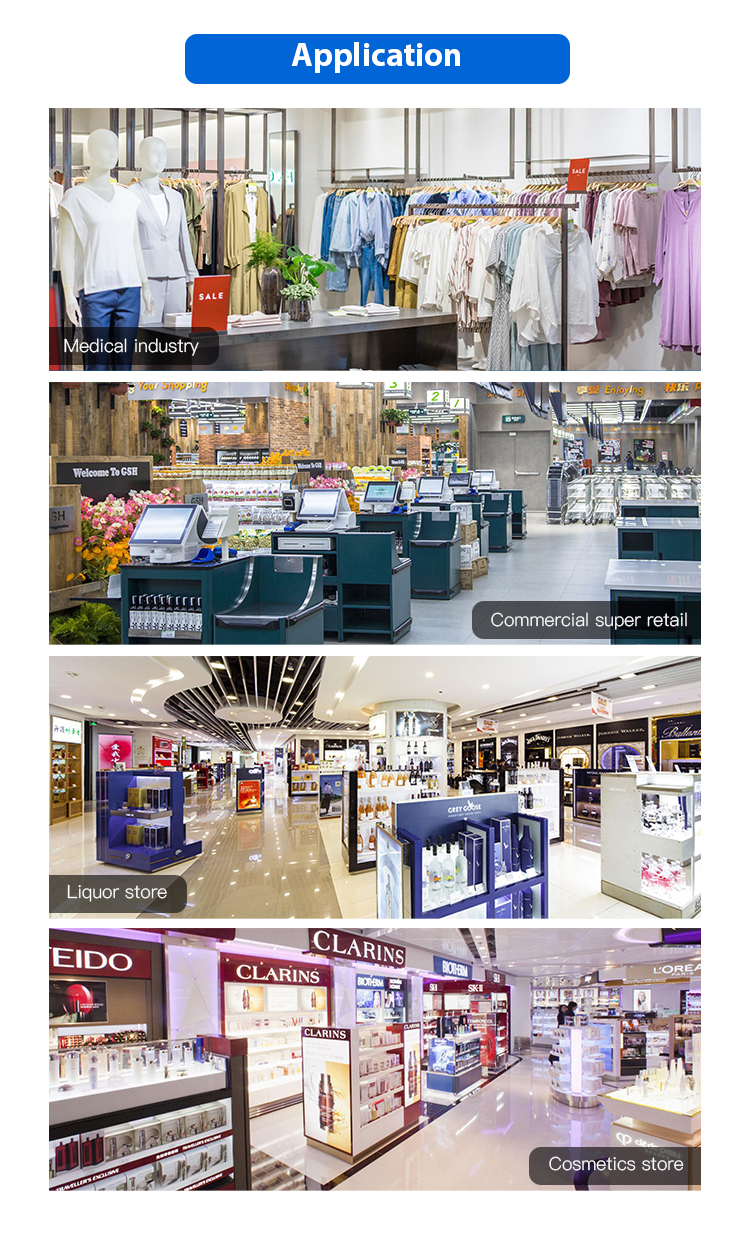

Application
Supermarket Handheld USB Barcode Scanner 1D 2D QR Code Waybill Desktop
