Omnidirectional Buzzer Indicator QR Barcode Scanner CMOS

Name: Omnidirectional Buzzer Indicator QR Barcode Scanner CMOS
Brand: DYscan
Price: 1 USD

Buy cheap Omnidirectional Buzzer Indicator QR Barcode Scanner CMOS product

Brand Name : DYscan

Model Number : DP8501

Certification : CE ROHS FCC IEC

Place of Origin : China

MOQ : 2pcs

Price : Negotiable

Payment Terms : T/T, Western Union,PAYPAL

Supply Ability : 100000pcs/month

Delivery Time : 5-7days

Packaging Details : 54*34*34CM/30pcs /Carton

Scan Type : CMOS

Resolution : 1D：≥3mil，2D：≥8.7mil @PCS90%

Decoding speed : 100CM/S

Depth of field : 3mil：55~100mm，13mil：55~350mm

Scan Mode : Continuous

Print Contrast Signal : 20%PCS

Symbologies : 1D 2D

Dimension : 103mm L × 105mm W × 150mm H

Interface type : USB、RS232

Weight : 265g（without cable）

Contact Now

2D Portable Barcode Scanner

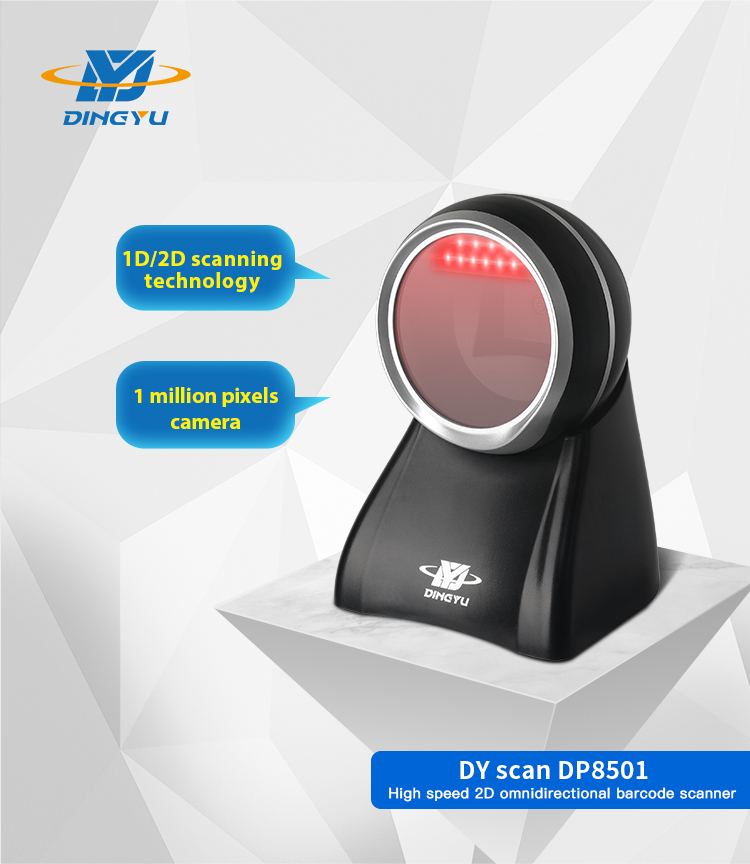

DP8501 is an omnidirectional 2D desktop scanner with advanced CMOS image recognition technology.

It can easily read paper, goods, screens and other media 1D 2D barcodes.

Widely used in large supermarkets, restaurant, chain stores, and grocery stores.

Feature

☆ Fashionable design, auto sense scanning.

☆ 2d image technology, read paper, plastic, screen 1D 2D barcodes, etc. easily.

Performance

Scan Type

CMOS

Light Source

Red LED

CPU

32-bit

Resolution

1280*800

Resolution

1D:≥3mil,2D:≥8.7mil @PCS90%

Decoding speed

100CM/S

Depth of field

3mil:55~100mm,13mil:55~350mm

Scan Mode

Continuous

Indicator

buzzer

Scan angle

Roll:±360°,Pitch:±70°or greater,Yaw:±65°or greater)

View angle

Horizontal 62°× Vertical 41°

Print Contrast Signal

20%PCS

Ambient Light

Dark environment, indoor natural light

Symbologies

1D:UPC-A,UPC-E,EAN-8,EAN-13,Code 128, GS1-128, Code 39,Code 32, Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5(Straight 2 of 5),Codabar(NW-7),MSI,GS1 Databar(Omnidirectional, Limited, Expanded), etc.

2D: QR Code, Micro QR Code, Data Matrix,PDF417, Micro PDF 417, Aztec,etc.

Physical Parameter

Weight	265g(without cable)
Dimension	103mm L × 105mm W × 150mm H
Communication Mode	USB-KBW, USB-COM (Need driver),RS232
Interface Type	USB, RS232
Power Supply	DC 5V@290mA(work)

Environmental

Operating temperature	-20℃ to 55℃
Storage temperature	-20℃ to 60℃
Humidity	5% to 95%(non-condensing)
Drop Height	1.2m
Transport Vibration Test	10H@125RPM

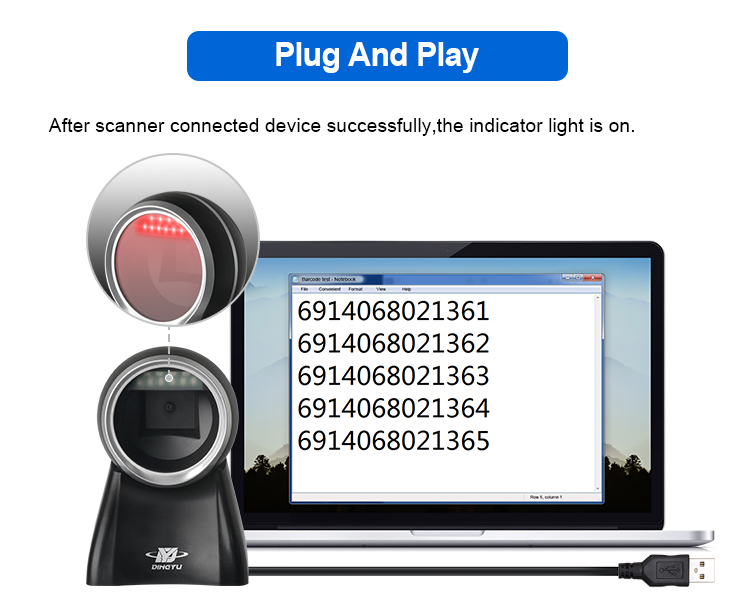

Detail Image

Omnidirectional Buzzer Indicator QR Barcode Scanner CMOS

Product Tags:

Omnidirectional QR Barcode Scanner

Buzzer Indicator QR Barcode Scanner

CMOS Automatic USB Barcode Reade

Omnidirectional Buzzer Indicator QR Barcode Scanner CMOS Images
