2D USB RS232 Desktop Barcode Scanner Wall Mounted DP8550

Name: 2D USB RS232 Desktop Barcode Scanner Wall Mounted DP8550
Brand: Dingyu/ DY SCAN
Price: 1 USD

Buy cheap 2D USB RS232 Desktop Barcode Scanner Wall Mounted DP8550 product

Brand Name : Dingyu/ DY SCAN

Model Number : DP8550

Certification : CE, ROHS, FCC, IEC, FDA

Place of Origin : China

MOQ : 1

Price : Negotiate

Payment Terms : T/T, Paypal, Alibaba

Supply Ability : 10000pcs/month

Delivery Time : 3-7 days

Scan type : CMOS

Color : Black

Interface type : USB,RS232

Dimension : L150mm * W150mm* H75mm

Scan distance : 0-650mm

Scan mode : Continuous

Resolution : ≥4mil/0.1mm（PCS90%,CODE 39）

Scan angle : Roll：±360°、Pitch：±70°or greater、Yaw：±65°

Weight : 425g

Contact Now

2D high quality wall mounted USB RS232 cheap desktop barcode scanner DP8550

Product Description

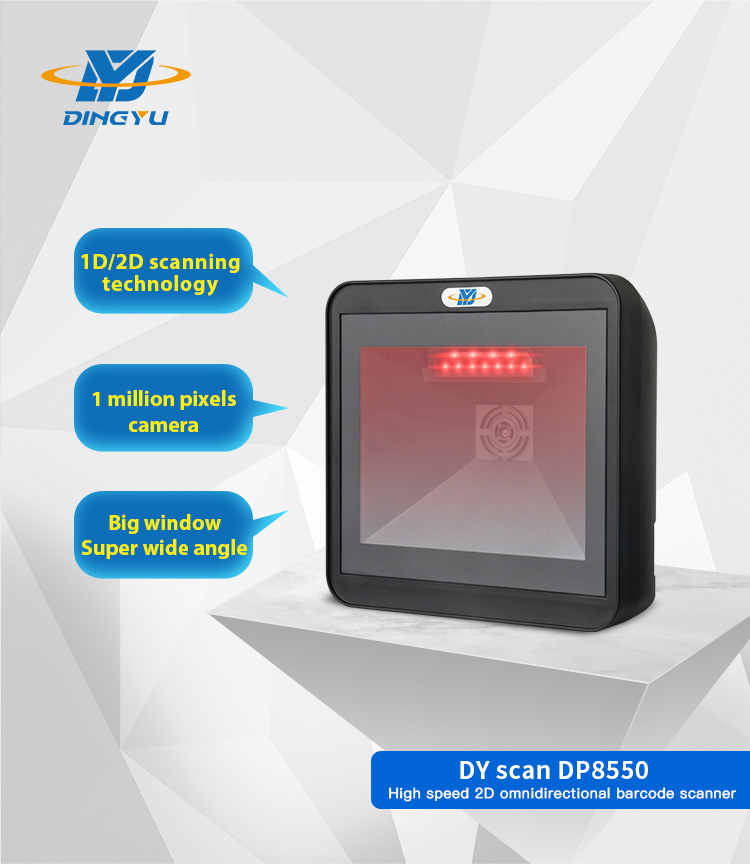

DP8550 is a stylish desktop two-dimensional image scanning platform, using advanced CMOS image recognition technology, intelligent image recognition system.

can be used in high-flow retail cashier environment and is suitable for large supermarkets, department stores, convenience stores, drugstores, tobacco hotels and grocery stores.

2D USB RS232 Desktop Barcode Scanner Wall Mounted DP8550

Features

☆ High-performance MCU to easily identify the mainstream 1d or2d barcode.

☆ Read bar codes above 4MIL to meet the need of daily scanning.

☆ 2d imaging technology, support paper, printing, plastic, screen barcode.

Parameter

Scan Type	CMOS
Light Source	Red light
Pixel	1280*800
Resolution	≥4mil/0.1mm(PCS90%,CODE 39)
Decoding speed	100CM/S
Depth of field	0-650mm
Scan Mode	Continuous
Scan angle	Roll:±360°,Pitch:±70°or greater,Yaw:±65° Horizontal 62°× Vertical 41°
Print Contrast Signal	≥20%
Symbologies	1D:UPC-A,UPC-E,EAN-8,EAN-13,Code 128, GS1-128, Code 39,Code 32, Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5(Straight 2 of 5),Codabar(NW-7),MSI,GS1 Databar(Omnidirectional, Limited, Expanded), etc. 2D: QR Code, Micro QR Code, Data Matrix,PDF417, Micro PDF 417, Aztec,etc.

Weight	≈425g(without Cable)
Dimension	L150mm * W150mm* H75mm
Communication Mode	USB,RS232
Cable length	1.5m
Power Supply	DC 5V@260mA(work

2D USB RS232 Desktop Barcode Scanner Wall Mounted DP8550

Company profile

Our Services

1. Your inquiry related to our products or price will be replied in 24 hours.

3. Protection of your sales area, ideas of design and all your private information.

4. Engineers can help you to solve any technical problems.

5. 1 year warranty.
